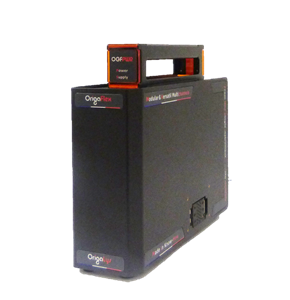

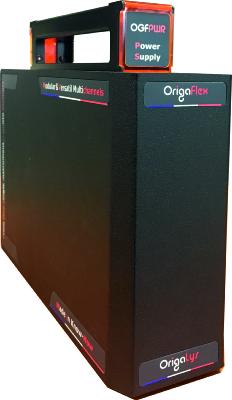

The OGFPWR is a power supply. It deliver the current to :
- One potentiostat : OGF500 or OGF01A or OGF05A or OGF10A.
- And/or one impedance module : OGFEIS.
You can have an autonomous potentiostat galavanostat.
OGF500
Pack
OGF01A
OGF05A
OGF10A
5 years warranty !
The OrigaFlex range is a multi-channel system, modulare Mutli-potentiostats, compact and unique on the market. You can start your system with one potentiostat (single-channel) connected to a power supply with and controlled by USB. Three power are available :
±500 mA with OGF500
±1 A with OGF01A
±5 A with OGF05A
±10 A with OGF10A
OGFPWR
To run, your single-channel potentiostat must be connected to a power supply or a drive unit.
The OGFPWR allows you to supply one and only one potentiostat with an impedance module or not.

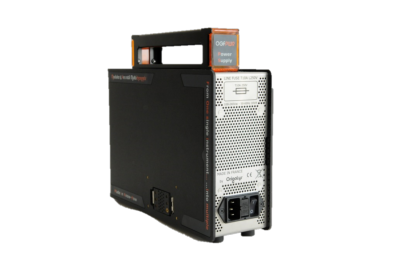

Das OGFPWR allows you to supply, one and only one potentiostat with an impedance module or not. The power module does not support the connection with the PC. This is made via USB from the rear panel of the potentiostat.
The single-channel system is drived by USB connexion via OrigaMaster 5 software.
Power
Weight

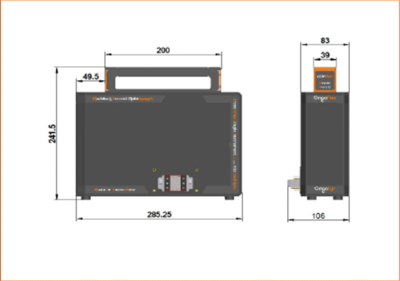

Dimensions
Length
Width
Height
100-240 Vac - 50-60 Hz - 1 KVA
3.10 kg
in cm
28.5
8.3
24.15
OGF500 PACK
OGF01A PACK
OGF05A PACK
OGF10A PACK
